Feature

●  Supports multiple combination of Gigabit RJ-45 ports and fiber ports(ST/FC/SC/SFP)

●  IGMP Snooping filter multicast packet

●  100Base-FX, 1000Base-X Web selection management

●  IEEE 802.1Q VLAN, QoS

●  Supports private UT-Ring

●  SNMPv1/v2/v3 for different level network management

●  Trap & RMON, convenient for network monitoring

●  IEEE 802.1x

●  Link aggregation, improve network bandwidth

●  Port isolation & ACL, enhance network management safety

●  Port mirroring, convenient for online debugging

●  DHCP server, allocate IP address

●  Port transmission rate limitation, broadcast/multicast/uncertain unitcast storm relieving

●  LLDP, Link flap, UDLD, DDM for troubleshooting

●  Wide operating temperature: -40~75℃

Protocol Standard

Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x

Protocol: ARP, ICMP, TCP, HTTP/HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP

Server, UDLD, NTP, RMON, Syslog

Flow control: IEEE802.3x flow control, backpressure flow control

Interface

Fiber port:100Base-FX/1000Base-X,(SC/FC/ST/SFP slot) RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X

LED indicator

power indicator, fiber port indicator, RJ-45 indicator, running indicator

Transmission Distance

Cat.5e: 100m

Optical module

Single-mode: 1,310nm 20/40Km

1,550nm 60/80/100/120Km

Multi-mode: 1,310nm 2Km

Switch property

Forwarding rate: 1,488,095pps Transmission mode: store and forward MAC address size: 8K

Cache size: 4.1Mbit Switching bandwidth: 40G Max. frame length: 10KB Power requirement

Input voltage: 12/24/48VDC(10.8-52.8VDC), reverse polarity protection

Power consumption Max.850mA@24Vmax Mechanical characteristic IP rating: IP40

Weight: <1600g

Installation: DIN-Rail/wall mounting

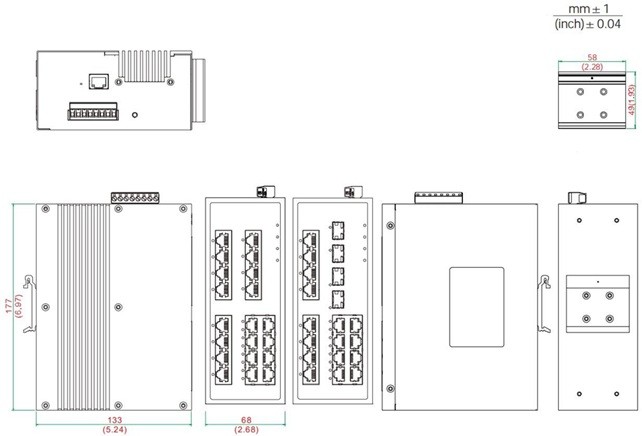

Mechanical dimension

Device size (W x H x D): 177mm x 68mm x 133mm Package size: 250mm x 205mm x 108mm Operating environment

Operating temperature: -40 ~ 75°C Storage temperature: -40 ~ 85°C

Relative humidity: 5~95% (non-condensing)

Industrial standard

EMI: FCC Part 15, Subpart B classA, EN55022 class A EMS:

IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall) IEC 60068-2-6(Vibration)
