SR-E216P16G
SR-E216P16G series are full Gigabit managed industrial Ethernet switches. It supports up to 16 Gigabit ports, and 1 console port; it provides WEB & CLI management; the switch supports industrial field layer 2 protocols, this enhances the networking flexibility.
Product description
Feature
● Supports fast Ethernet ports
● IGMP Snooping filter multicast packet
● IEEE 802.1Q VLAN, convenient for simple network planning
● QoS, realize real time data flow classification and priority
● STP/RSTP/MSTP network redundancy, prevent network storm
● Support private UT-Ring
● SNMPv1/v2/v3 for different level network management
● Trap & RMON, convenient for network monitoring
● IEEE 802.1x
● Link aggregation, improve network bandwidth
● Port isolation & ACL, enhance network management safety
● Port mirroring, convenient for online debugging
● DHCP server, allocate IP address
● Port transmission rate limitation, broadcast/multicast/uncertain unitcast storm relieving
● LLDP, Link flap, UDLD, and loop detection for troubleshooting
● Wide operating temperature: -40~75℃
Specification
Protocol Standard
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x
Protocol: ARP, ICMP, TCP, HTTP/HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP
Server, UDLD, NTP, RMON, Syslog
Flow control: IEEE802.3x flow control, backpressure flow control
Interface
RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X
LED indicator
power indicator, RJ-45 indicator, running indicator
Transmission Distance
Cat.5e: 100m
Switch property
Forwarding rate: 1,488,095pps Transmission mode: store and forward MAC address size: 8K
Cache size: 4.1Mbit Switching bandwidth: 32G Max. frame length: 10KB Power requirement
Input voltage: with optional of 12/24/48VDC(10.8-52.8VDC) and 110/220VAC(88-264VAC)/50-60Hz or 110/220VDC(88-264VDC)
Supports dual power input Power consumption 375mA@24Vmax Mechanical characteristic IP rating: IP40

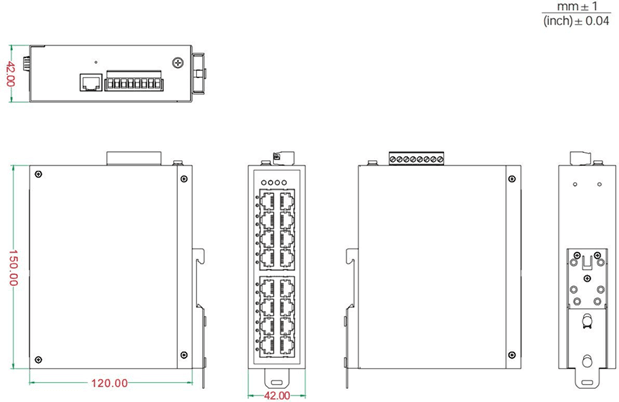

Weight: <1200g Installation: DIN-Rail Mechanical dimension
Device size (W x H x D): 150mm x 42mm x 120mm Package size: 250mm x 205mm x 55mm Operating environment
Operating temperature: -40 ~ 75°C Storage temperature: -40 ~ 85°C
Relative humidity: 5~95% (non-condensing)
Industrial standard
EMI: FCC Part 15, Subpart B classA, EN55022 class A EMS:
IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall) IEC 60068-2-6(Vibration)
