SR-9619
The SR-9619 series is a dual-SIM, five-port, all-network industrial wireless router. It uses wireless cellular networks as the bearer network and supports full-network 5G/4G/3G connectivity. With a compact design, low power consumption, and flexible interface configuration, it integrates rich and intelligent hardware and software features to provide secure, high-speed wireless connections between remote devices and data centers.
Category: 5G Router
Product description
| SR-9619-FS | |
| Parameter | Hardware Specification |
| CPU | Industrial 32-bit Processor |
| DRAM | 64MB(expandable up to 128 MB) |
| FLASH | 16MB(expandable up to 32 MB) |
| Operation System | Deep customized based on Linux |
| 5G | 5G NR：n1/n28/n41/n78/n79 |
| 4G | FDD-LTE：B1/B3/B5/B8 TDD-LTE：B34/B38/B39/B40/B41 |
| 3G | WCDMA：B1/B2/B5/B8 |
| SIM/UIM Port | Supports 1.8V / 3V SIM / UIM cards Built-in 15 kV ESD protection 2 × drawer-type card slots |
| Industrial serial Interface | 1*RS232&RS485(RS232 or RS485 optional) |
| Antenna | 4 external antenna connectors with a characteristic impedance of 50 ohms, SMA female connectors (2 for 4G antennas and 2 for Wi-Fi antennas) |
| Power Interface | Terminal block power input with reverse polarity protection |
| Power Supply | DC 12V / 1.5A, supports overload protection and reverse polarity protection |

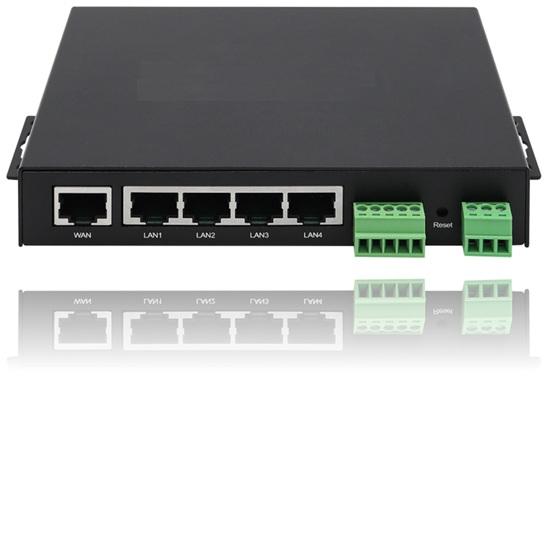

| RJ45 Port | 1 × 10/100 Mbps adaptive WAN/LAN port with built-in 1.5 kV electromagnetic isolation protection, default as WAN and configurable as LAN 4 × 10/100 Mbps adaptive LAN ports with built-in 1.5 kV electromagnetic isolation protection |

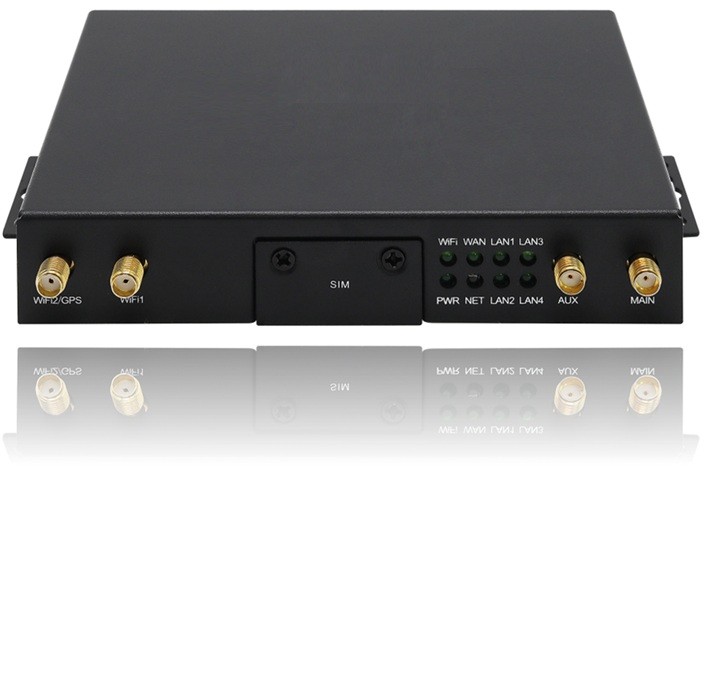

| Indicator | 1 × PWR power indicator 1 × Wi-Fi system indicator 1 × LAN indicator 1 × WAN network indicator 1 × NET (SIM card) indicator |
| Real time Clock | Built-in RTC (Real-Time Clock) function Battery-powered |
| RJ45 Port | 1 × 10/100/1000 Mbps adaptive WAN port, configurable as an Ethernet LAN port 4 × 10/100/1000 Mbps adaptive Ethernet LAN ports with built-in 1.5 kV electromagnetic isolation protection |
| Standard Power | DC12V/1.5A Supports overload protection and reverse polarity protection |
| Power Range | +6~35VDC(DC Type) |
| Reset | The device can be reset via the Reset button to restore its parameters to factory default settings. |

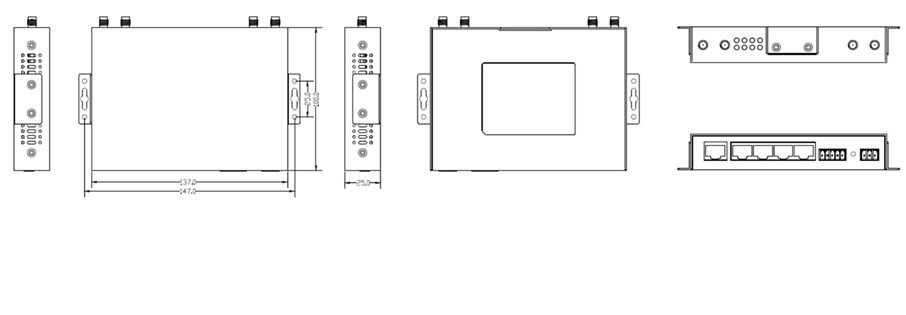

| Size | LxWxH=137x100x25mm (without antenna and accessories) |
| Idle Current | 138mA@12VDC |
| Average Current | 150mA@12VDC |
| Peak Current | 800mA@12VDC |
| Max power consumption | 9.6W |
| Working Temperature | -30°C~+75°C |
| Storage Temperature | -40°C~+85°C |
| Relative Humidity | 5%~95%(non-codensing) |
| Net Weight | About 385g |
| Enclosure | Metal case design, protection level is IP40 |
| Installation | Wall-mount or Din-rail (optional) |
| SR-9619-FS | |
| Parameter | Software Specification |
| Network Access | APN，VPDN |
| PPPoE | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| VLAN | Support VLAN Management |
| Network Protocol | Support ARP，Ethernet LAN protocol Support static IP，DHCP，PPPoE protocol |
| IP Router | RIP,Static Router |
| IP Application | Ping，Traceroute，DHCP，server/Client，DNSRelay，Telnet，DynamicDNS，SSH，HTTP，HTTPS，TFTP，FTP，SFTP，NAT |
| Link Detection | TCP/Ping heartbeat detection and VPN link monitoring, with support for automatic reconnection upon disconnection, ensuring the device remains "always online." |
| Link Backup | Link switching between cellular networks, Wi-Fi, and wired Ethernet |
| Internal Watch Dog | Supports automatic device fault recovery to ensure stable equipment operation |
| VPN | OpenVPN，IPsec，L2TP\PPTP，N2N，GRE |
| Firewall | Supports NAT, PAT, and DMZ port mapping, as well as IP, port, and MAC filtering |
| DTU | Internal software DTU function |
| Network Security | Supports hierarchical user management: Administrator and Maintenance Operator |
| Alarm Events | Systems and application logs |
| Scheduled Task Management | Supports scheduled device restart |
| SNMP | SNMP v1/v2 |
| WLAN | Support IEEE 802.11n b/g/n AP/Client work mode,System open,shared password ,WPA/WPA2 Authentication WEP/TKIP/AES encryption Portal access authentication |
| Management and maintenance | Support Web Management Telnet and SSH terminal System status monitoring NTP Client for device system clock network sync,import/export of configuration files,local and remote firmware upgrade(saves labor),network tools:ping,Tracert, Supportdevic manager cloud device management platform,batch operations,centralized management. |
| Traffic Statistics | Real-time traffic,monthly traffic statistics,traffic limit settings |
