SR-9306

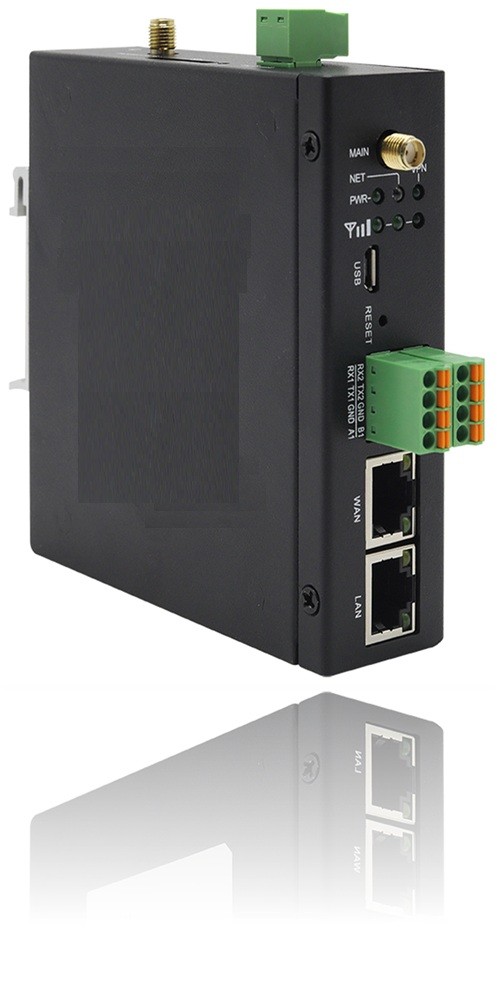

SR-9306 series is a high speed, compact size, 4G industrial gateway. Based on Wireless cellular network, support all 4G/3G/2G network, with high edge data collection capability, the device can enable data optimization, real-time response, and intelligent analysis at IoT edge nodes, support multiple VPN protocol (IPsec, L2TP/PPTP, N2N, GRE) to ensure the security of data transmission.
Product description
| SR-9306-FS | |
| Parameter | Hardware Specification |
| CPU | 580MHz 32-bit Processor |
| DRAM | 64MB |
| FLASH | 128MB |
| WIFI | 2.4G 300Mbps，802.11B/G/N |
| 4G | FDD-LTE：B1/B3/B5/B8 TDD-LTE：B38/B39/B40/B41 |
| 3G | WCDMA：B1 CDMA2000 EVDO：800MHz TD-SCDMA：B34/B39 |
| 2G | EDGE/GPRS/GSM：1800MHz/900MHz CDMA2000 1X：800MHz |
| Operation System | Deep customized based on Linux |
| Antenna Interface | 2* external antenna interface, characteristic impedance 50 ohms, SMA female connector, 1 x 4G antenna interfaces, 1x Wi-Fi/GPS antenna interfaces |
| SIM/UIM Interface | Support 1.8V/3V SIM-UIM card, internal 15KV ESD protection, 1* draft card socket. |
| Industrial Console Port | 1*RS232/RS485， 1*RS232 terminal block, internal 15KV ESD protection |
| Indicator | 1*PWR LED, 1*NET online LED, 1*VPN LED, 3*SIGNAL network LED |
| Reset | Could make the device configuration back to factory default configuration through Reset button. |
| Power Connector | Adapt terminal power supply, internal polar reverse protection to avoid positive/negative wrong connection to destroy the device. |
| Standard power | DC 12V/1A, support overload protection, support polar reverser protection |
| RTC | Internal RTC |
| Ethernet interface | 1*10/100Mbit/s auto-negotiation WAN interface, could configured as ethernet LAN interface. 1*10/100Mbit/s auto-negotiation ethernet LAN interface, internal 1.5KV electromagnetic isolation protection |
| USB interface | 1* USB 2.0 |
| Power range | +6~48VDC (DC type) |
| Size | LxWxH=105x100x30mm(without antenna and accessories) |
| Idle Current | 230mA@12VDC |
| Peak Current | 500mA@12VDC |
| Working Temperature | -30°C~+75°C |
| Storage Temperature | -40°C~+85°C |
| Relative Humidity | 5%~95%(non-codensing) |
| Enclosure | Metal case design, protection level is IP30 |
| Installation | Wall-mount or Din-rail (optional) |
| SR-9306-FS | |
| Parameter | Software Specification |
| LAN protocol | ARP, Ethernet |
| WAN protocol | Static IP, DHCP, PPPoE |
| Network Access | APN，VPDN |
| PPPoE | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| VLAN | Support VLAN management |
| IP Application | Ping，Traceroute，DHCP Server/Client，DNSRelay，DynamicDNS，Telnet，SSH，HTTP，HTTPS，TFTP，FTP，SFTP，NAT |
| IP Router | Static Router, Dynamic Router |
| VPN | OpenVPN，IPsec，L2TP/PPTP, N2N, GRE |
| Firewall | Support NAT、PAT、DMZ port mapping, IP, port, MAC filter |
| Link Detection | TCP/Ping heart beat detection, support automatic reconnection after disconnection for non-stop device operation, Ping heart beat detection |
| Link Backup | Cellular network, WIFI and Wired Ethernet link switch |
| Qos | Uplink and downlink bandwidth limited. |
| Internal Watch Dog | Supports automatic device fault recovery to ensure stable equipment operation |
| DTU | Internal software DTU, support Modubus TCP/RTU switch, support 101/104 protocol switch. |
| WLAN | Support IEEE 802.11n b/g/n 2.4GHz AP、Client work mode System open, share key WPA/WPA2 certificates WEP/TKIP/AES encryption Portal access authentication |
| Scheduled Task Management | Support Scheduled Restart |
| Flow statistics | Reality flow, monthly flow statistics, flow limit setting |
| SNMP | SNMP v1/v2 |
| Management and maintenance | Support Web Management Telnet and SSH terminal system status monitor NTP Client, supports network synchronization of the device system clock Support configuration file upload and download Support local and remote firmware upgrade, save the labor and material cost. Network tool: Ping, Traceroute Support device manger cloud device managed platform, patch operation, centralized management. |
| Open source platform | Support C/C++ development, could realized as per customization. |
| Industrial protocol | Support Modbus/S7/IEC101/IEC103/DLT645 and others. |
Industrial Design, comply with industrial user requirement
• Adapting Industrial grade chipset design, suitable for hash industrial working environment.
• Fanless design, comply with hash industrial working environment, robust an long-lasting.
• IP40 protection level, security isolation for case and system, suitable for industrial control site.
• Low application consumption, support +12-48VDC wide range power supply, could be used in variety site power supply.
High Reliability Design, ensures stable operation of the equipment
• Internal watch dog, fault self-recovery, ensure the device work stable.
• Multiple link detection and anti-disconnection mechanism ensures permanent online operation of the device
• Support multiple VPN protocol (IPsec, L2TP/PPTP, N2N, GRE) to ensure the security of the data transmission.
• Single mode dual card slot, dual antenna design, enhance the wireless signal, to ensure the site network working stablely.
Easy to use and manage
• Support cellular network，wired, wireless and other access method.
• Support WEB configuration, easy to deploy
• Support local and remote firmware upgrade to save labor and material cost.
• Support Device Manager Cloud platform, patch operation and central management.
Full-featured design, fast and hassle-free wireless communication experience
• Support 4G/3G/2G, ethernet or WLAN wired network connect at the same time, to ensure the network working more stable and fast.
• With high performance 4 core CPU, can enable data optimization, real-time response, and intelligent analysis at IoT edge nodes
• Support 2.4G, 5.8G dual-band WIFI, cover all signal.
• Support multiple industrial interface, RS232/485/CAN/USB and others.
