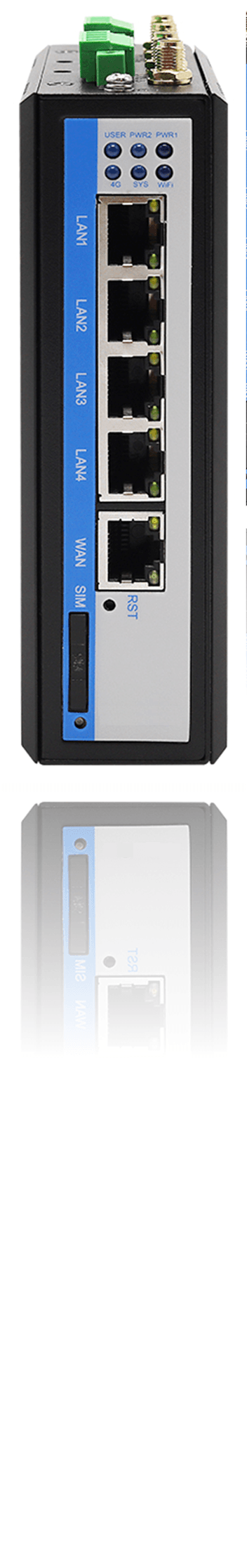

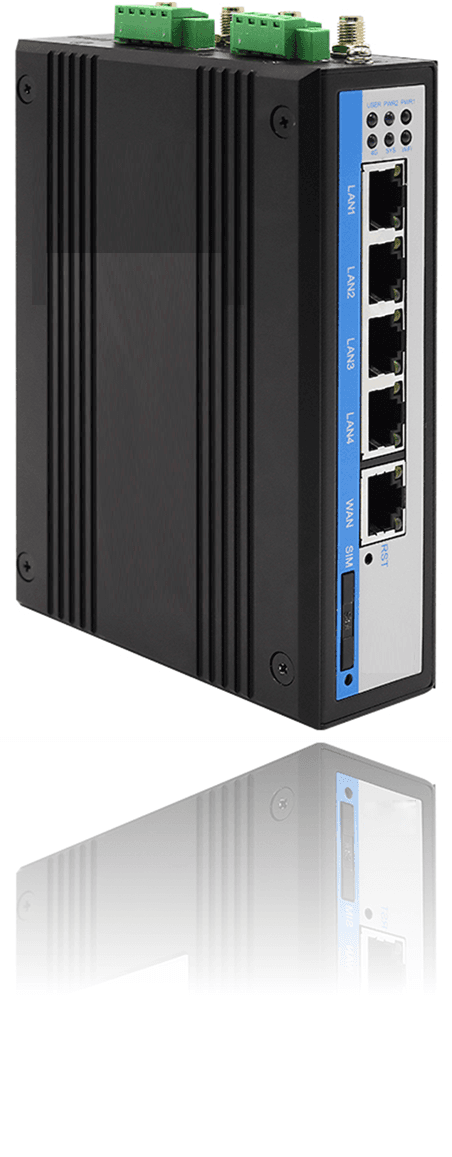

SR9502
SR9502 series is a normal multiple network industrial grade wireless router. The router could meets the requirement of one-station multi-device access, supports 3G/4G mobile broadband network standards, WIFI function and dual-serial-port DTU function, and is expandable with GPS positioning function.
Category: 4G Router
Product description
| SR9502-FS | |
| Parameter | Hardware Specification |
| CPU | Industrial 32-bit Processor |
| DRAM | 512MB( max to 2GB) |
| FLASH | 128MB(max to 512MB) |
| WIFI | 2.4G 300Mbps，802.11B/G/N |
| 4G | LTE-FDD：B1/B3/B5/B8 LTE-TDD：B34/B38/B39/B40/B41 WCDMA：B1/B5/B8 GSM：900M/1800M |
| Operation System | Deep customized based on Linux |
| Ethernet | 1*WAN/LAN 10M/100M auto-negotiation 4*LAN10M/100M auto-negotiation |
| Antenna | 4*SMA Detachable Antenna |
| SIM Interface | Self-locking SIM card holder, with 1.8V/3.3V dual voltage support and 15KV ESD protection |
| Industrial Console Port | 1*RS232, RS485 |
| Indicator | 2*PWR LED, 1*WIFI LED, 1*4G LED, 1*SYS LED, 1*USER LED |
| Reset | Could make the device configuration back to factory default configuration through Reset button. |
| Reliability | EMC 3 |
| Power Connector | 3.81 terminal block, 12-24V, internal overload protection and reverse polarity protection |
| Size | LxWxH=140x101.4x33.6mm(without antenna and accessories) |
| Idle Current | 130mA@12VDC |
| Average Current | 190mA@12VDC |
| Peak Current | 240mA@12VDC |
| Working Temperature | -20°C~+70°C |
| Storage Temperature | -40°C~+85°C |
| Relative Humidity | 5%~95%(non-codensing) |
| Enclosure | Metal case design, protection level is IP30 |
| Installation | Wall-mount or Din-rail (optional) |
| SR9502-FS | |
| Parameter | Software Specification |
| Network Access | Ethernet WAN, 4G/3G |
| PPPoE | Auto/PAP/CHAP/MS-CHAPV2 |
| Network Protocol | Support ARP，Ethernet LAN protocol Support static IP，DHCP，PPPoE protocol |
| IP Router | Static Router |
| IP Application | Ping，Traceroute，DHCP Server/Client，DNSRelay，DynamicDNS，Telnet，SSH，HTTP，HTTPS，TFTP，FTP，SFTP，NAT |
| Link Detection | TCP/Ping heart beat detection, support automatic reconnection after disconnection for non-stop device operation, Ping heart beat detection |
| Link Backup | Support WAN an LTE link, WAN priority, LTE backup |
| Internal Watch Dog | Supports automatic device fault recovery to ensure stable equipment operation |
| VPN | OpenVPN，IPsec，L2TP/PPTP， GRE |
| Firewall | Support NAT、PAT、DMZ port mapping, IP, port, MAC filter |
| DTU | Internal software DTU function Console port: console port parameter configuration Network protocol: MQTT/TCP client/TCP Server |
| WLAN | Support IEEE 802.11n b/g/n System open access, shared secret key, WPA/WPA2 Authentication WEP/TKIP/AES encryption Wireless high level parameter configuration |
| Management and maintenance | Support Web Management Telnet and SSH terminal System status monitor NTP Client, supports network synchronization of the device system clock Support configuration file upload and download Network tool: Ping, Tracert |
