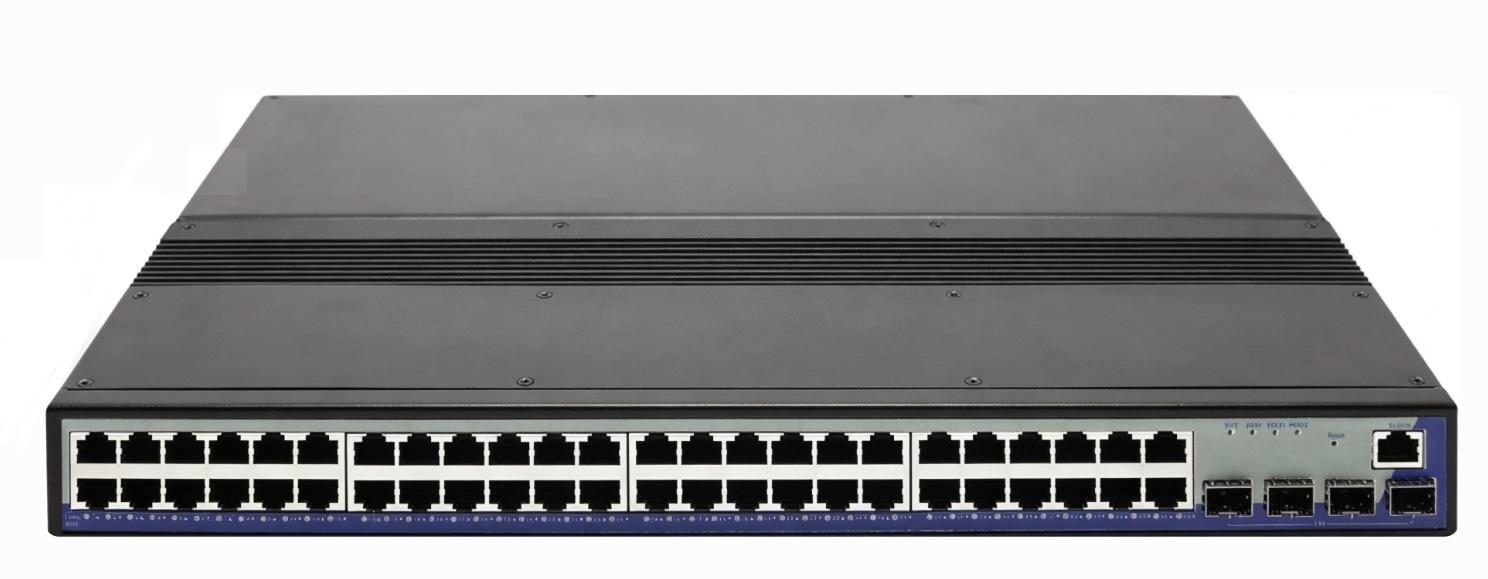

SR-E352P48G4XG
The SR-E352P48G4XG series is a high-performance, cost-effective managed 10 Gigabit Ethernet Layer 3 switch. This switch provides 48 Gigabit Ethernet ports and four 10 Gigabit SFP+ interfaces, increasing bandwidth and improving network data communication while being ideally suited for large-scale industrial network applications. Supporting a variety of Layer 2 software features (port mirroring, VLANs, port trunking, IGMP Snooping, QoS, STP/RSTP/MSTP, etc.) and essential Layer 3 routing protocols
Product description
Supports 8 Gigabit Ethernet ports + 4 10Gbps SFP+ ports and 10GBase-R SFP ports.
Supports web-selectable 1000Base-X and 10GBase-R mode configuration.
Supports PIM-SM and IGMP Snooping for filtering multicast packets.
Supports IEEE 802.1Q VLANs for easy network planning.
Supports 8 QoS queue mappings for enhanced network stability.
Supports Ring, ERPS, STP/RSTP/MSTP for network redundancy and broadcast storm prevention.
Supports SNMPv12c/v3 for network security and management.
Supports link aggregation (static aggregation/LACP) for optimized network bandwidth.
Supports access control lists (ACLIPv4/PV6) for enhanced flexibility and network management security.
Supports port mirroring for easy online debugging.
Supports port rate limiting, broadcast storm suppression, multicast
storm suppression, and unknown unicast storm suppression to ensure network stability.
Supports RMON for efficient and flexible network monitoring.
Supports VLANs to simplify network planning.
Supports loop detection to effectively eliminate the impact of port loops.
Supports SFPDDM provides fiber diagnostics and troubleshooting,
Supporting log management.
Supports Layer 3 switching (static routing, RIP, OSPF, and VRRP).
Supports power and port status indicators for alarms.
Supports a wide operating temperature range of -40°C to 75°C.
| Protocol Standard | |
| Standard | IEEE802,3,IEEE802,3u,IEEE802,3x,IEEE802,3z,IEEE802,1Q,IEEE802,1p,IEE E802,1D,IEEE802,1W,IEEE802,1s,IEEE802,3ad,IEEE802,1x |
| Protocol | ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, ERPS, UDLD,NTP, RMON, Syslog |
| Layer 3 Routing protocol | Static route, RIP V1/V2. OSPF, VRRP, PIM-SM, support Router Redundancy |
| Flow control | IEEE802,3x flow control, backpressure flow control |
| Interface | |
| Fiber ports | 100Base- FX/1000Base- X ports (SC/FC/ST/SFP slot) |
| RJ45 ports | 10/100/1000Base-T ports, MDI/MDI-X auto-negotiation |
| LED Indicator | Power LED, Network LED, Running LED, Alarm LED |
| Transmission Distance | |
| Twisted Pair | 100m |
| Fiber Module | |
| single mode | 1310nm 20/40Km 1550nm 60/80/100/120Km |
| multi mode | 1310nm 2Km |
| Switching performance | |
| 100M Switching Speed | 148810pps |
| Gigabit Switching Speed | 1488095pps |
| 10G Switching Speed | 14881000pps |
| Switching mode | Store and forward |
| MAC table | 16K |
| Packet Buffer | 12Mb |
| Bandwidth | 96G |
| Jumbo Frame | 12KB |
| Host routing table | 16K(IPv4), 2K(IPv6) |
| Network segment routing table | 512(IPv4), 128(IPv6) |
| Power | |
| Power Supply | 12/24/48VDC(10.8~52.8VDC), support reverse polarity protection |
| Full load | 650mA@24V max |
| Mechanics Features | |
| Case | IP40 protection level |
| Installation | Din-rail/Wall mount |
| Weight | 1.3KG |
| Size | 150mmx64mmx120mm |
| Package Size | 150mmx205mmx108mm |
| Enviroment | |
| Working Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 0~95%(non-codensing) |
| Field Standard | |
| EMl: FCC Part 15 Subpart B classA, EN55022 class AEMS: | |
| IEC(EN)61000-4-2(ESD) | |
| IEC(EN)61000-4-3(RS) | |
| IEC(EN)61000-4-4(EFT) | |
| IEC(EN)61000-4-5(Surge) | |
| IEC(EN)61000-4-6(CS) | |
| IEC(EN)61000-4-8 | |
| IEC 60068-2-27(Shock) | |
