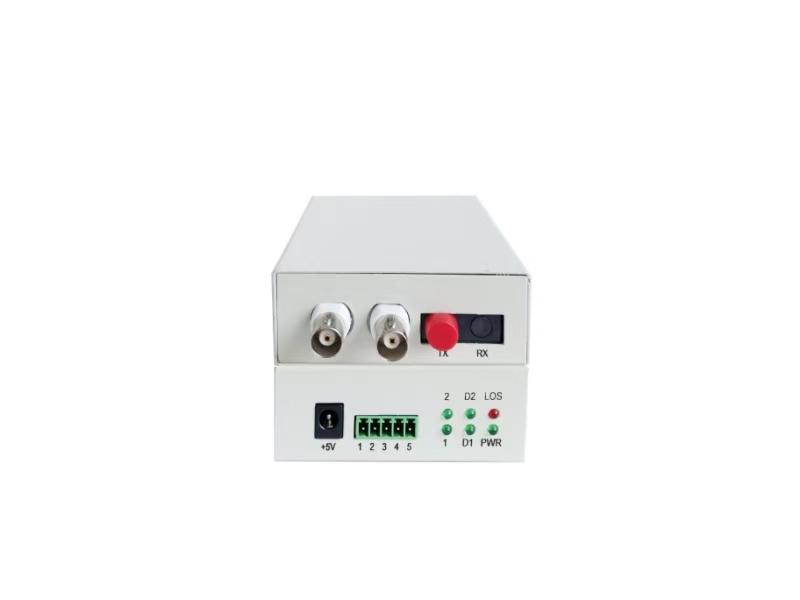

ST-GS1V1D-T/R
ST-GS1V1D-T/R is the uncompressed digital video multiplexer with 1 channel data which support RS232/RS485/RS422, one single FC fiber port, could transmitt the signal 20KM long distance. It is easy to install and providing the high quality real-time video. It could be applied the field such as CCTV, video surveillance, national defence, ITS and etc.
Product description
1.Technology
u Transports 1 channel digitized, high quality, uncompressed video
u 8MHz video bandwidth, Compatible with NTSC, PAL and SECAM
u Exceeds RS-250C Medium Haul Specification for DG, DP and SNR.
u Provides 1 stereo audio and 1 reversed-directional data transmission over same optical fiber
u Transmission range up to 120KM depending on model
u Easy installation and adjustment free
u RS232, RS422/RS485 selectable data interfaces
u Optional 100M Ethernet channel support
2. Specification
| Video | |
| Format | PAL/NTSC/SECAM |
| Video Signal | 1Vp-p,75Ω |
| Digitization | 8/10bits |
| Bandwidth | 8MHz |
| DG | ＜1% |
| DP | ＜1% |
| SNR | ＞65dB |
| Connectors | BNC |
| Data | |
| Channel | 1, Bi-dir |
| Data Rate | 0~100Kbps/channel |
| Type | Selectable RS232/RS422/RS485 |
| Connectors | RJ45 |
| Power | |
| Power range | 200-240VAC,50/60Hz (standalone type) |
| 0.2A@12VDC (card type) | |
| Indicators | |
| Led | Power, Link Status, Video Signal |
| Environment | |
| Operation | -40℃~+75℃ |
| Storage | -40℃~+85℃ |
| Humidity | 0-95%(related humidity) |
